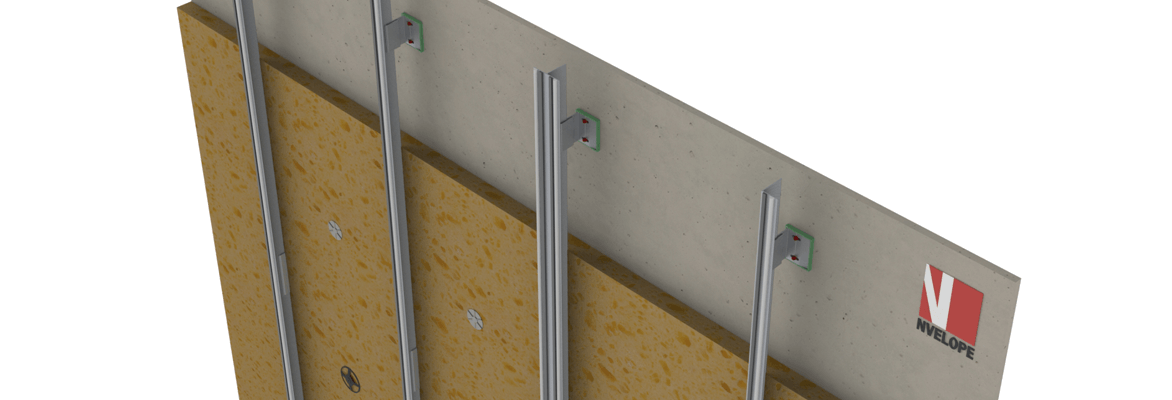

NV2 Rainscreen Subframe System
NV2 is the NVELOPE® subframe system suitable for concealed fix/structural bonding applications

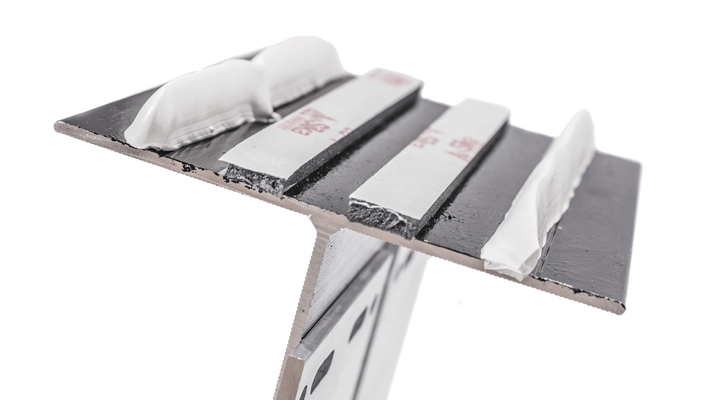

NV2 is suitable for concealed fix cladding applications – structural bond (Sika sikatack panel system). All fixed point brackets absorb both vertical dead loads.
Features
- NV2 is the NVELOPE subframe system for concealed fix / structural bonding applications.

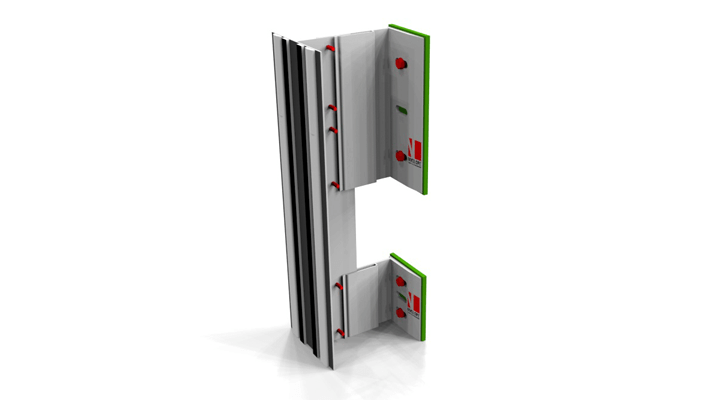

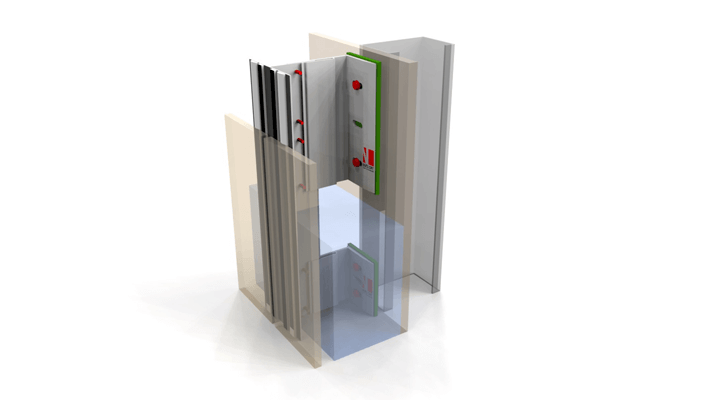

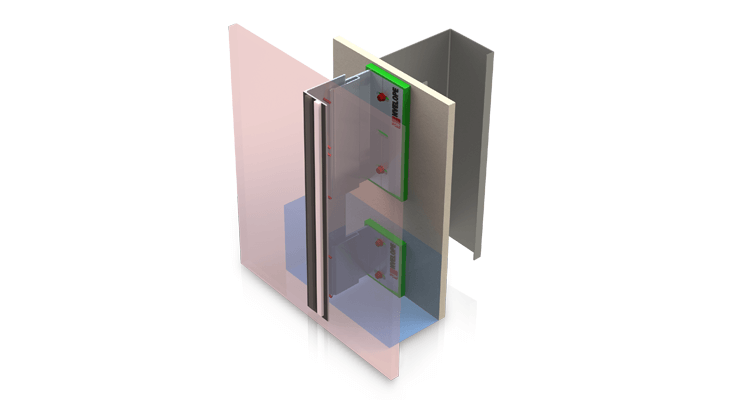

- NVELOPE 'T' and 'L' profiles are fixed using NVELOPE support brackets, fixed through a series of fixed and sliding points.
- NVELOPE flexible point brackets absorb wind loading and allow for expansion and contraction.
- NVELOPE fixed point brackets absorb both vertical dead loads.
- NVELOPE bracket spacing is determined by cladding options such as the dimensions and weight of the facade cladding, local wind loads.
Material
Manufactured from extruded 6005A T6 aluminium alloys conforming to EN 573-3 (material) and EN 755 production standards. Aluminium alloy 6005A is a medium strength, heat treatable alloy with excellent corrosion resistance characteristics.Options
- NVELOPE brackets NV: allows adjustment between the face of the primary support to outer face of vertical profile.
- Green isolators: hard polypropylene isolator assembled as standard (located between the NVELOPE bracket and the primary structural support system)
